| 加工定制：是 | 品牌：AMT | 型号：AMT-9543-00A |
| 显示器尺寸：15寸 | 分辨率：4096*4096 | 处理器：penmount |
| 显示器类型：LCD | 显示色彩：500：1 | 存储器：ad10 |
| 输入方式：触摸屏输入 | 输入电压：5V | 工作温度：-30~80度 |
| 面板防护等级：IP5 | 产品认证：ROHS | 控制器：penmount 9026 |

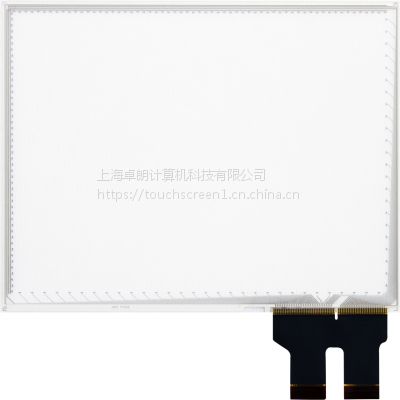

AMT 抗 UV PCI 触控面板同样拥有防水、厚手套、抗噪声等基本功能。
温馨提示：
图片仅供参考，表面玻璃厚度、Tail长度，外形尺寸，可视区域，作动区域，单片净重量、参考下方图片（一）
索要样品（付费，再下单量达到一定数量后退还样品费、或者再测试后***不影响使用的前提前退还我们，我们翻还你样品费）
价格、图纸、规格书请联系电话Tel:18101703156 或email:tech-supt@crealent.com
| 触控产品的应用强调人性化操作和方便使用，我们在使用触控产品时，有时不经意地让系统内的某个 应用程式被开启，这种状况常造成不便，更甚者有可能造成损失。 PenMount 在投射式电容(PCI 或 PCAP) 控制器上设计分别单一的触控开/关键，当系统不需要使用触控功能的时候，让触控功能关闭， 使误触的影响降低，它是一件人性化的设计。 若您的系统或设备放置在户外或是手持式的装置，会被雨淋到、被饮料泼溅到；在医疗系统设备上， 经常需要用清洁剂擦拭触控面板，或是在食品加工环境要高温消毒等等的使用。当每天需要清洁触控 面板时，大部分的客户希望机台能正常运作，不需要关闭系统电源就可以擦拭触控面板。但此时的触 控功能是启动的情况，擦拭可能带来非预期的触控动作，若要避免此类误触的问题，暂时关闭触控功 能是必要的，也就是不必关闭电源或是运行中的主机及作业，只要关闭触控功能即可，这是使用者期 望的功能。 如果具有单独触控开/关的这项功能，除了能避免清洁擦拭时产生的误动作，这对机台运行的可靠性也 可以提升。 PenMount 自行掌握硬体与韧体的开发技术，我们为您介绍 PenMount 投射式电容控制 器提供以下二种可启动触控功能或是暂时关闭触控的方式： 1. 软体方式 |
| 针对 Windows 桌面系统的环境，程式***可以藉由 PenMount 提供的 Windows 作业系统的 Application Program Interface (API)，让客户透过软体程式，自行定义是否开/关触控功能的时 机，我们将触控的相关功能整合在应用程式上。如果有其他系统的需求，例如 Linux 或 Android 平台，我们也会支援达到希望的功能，请您与 PenMount 团队联系。 2. 硬体方式 PenMount 投射式电容 COF 系列和控制板系列，在 USB 介面我们可以客制化韧体，利用其他 介面的连接器脚位，将输出功能设计为控制 PCI 触控的开/关讯号脚位，此脚位设定成低电压准 位或高电压准位，达到启动或关闭触控的功能。这方式属于硬体的设计概念，可以跨平台做使用， 不会因为系统不同而有所受限。采用硬体脚位来完成开/关设计，都是属于客制化的方式进行。 如果您预计采用 I2C 介面，欢迎与您的业务窗口说明，我们会为您提出适当的解决方案。 PenMount 不断的突破与创新，在泛工控领域持续提供完整的投射式电容触控控制器解决方案，客户 满意是我们的核心理念。今年的 Computex 台北国际电脑展已经圆满落幕，我们很开心与来访的客 户和来宾们相见，感谢各位对于 PenMount PCI 产品的支持与肯定，我们明年再见面！ |
| PenMount PCI Controllers Support Temporary Touch Suspension Touch product applications emphasize user-friendly operation and convenient use. When we use touch products, we sometimes open certain system applications unintentionally. This type of situation frequently causes inconveniences and, at worst, may even result in damage. PenMount has designed a separate and distinct touch on/off key into its projected capacitive (PCI or PCAP) touch controllers. When the system no longer requires touch functionality, touch can be shut off to lower the effects of inadvertent touch contact. This is a user friendly design. If your system or equipment is placed outdoors or a handheld device exposed to rain or spilled beverages, medical equipment with touch panels constantly subjected to cleaning agents, or applications for food processing environments requiring high temperature sterilization, most customers hope their products will be able to operate normally and without the need to shut down the system power supply during every day cleaning of the touch panel. If touch functionality is enabled, wiping the panel may generate unexpected touch operation. If this type of unintentional touch is to be avoided, touch functionality must be disabled temporarily, either shutting down power or interrupting system operation. Thus, the function users desire is a touch function that can be disabled independently. In addition to preventing false touch signals during cleaning, an independent on/off function also increases the reliability of system operation. PenMount possess proprietary hardware and firmware development technology. The following describes the two methods of enabling/temporarily disabling touch functionality offered by PenMount PCI controllers: |
| 1. Software In the Windows desktop system environment, software developers can use the Application Program Interface (API) provided by PenMount to allow customers to define the timing of enabling/disabling touch functionality. We have integrated relevant touch functions into our applications. If you have other system requirements such as for Linux or Android, we will also support the creation of the functions you envision. Please contact our PenMount sales staff. 2. Hardware On the USB interface, we can customize firmware for PenMount PCI COF and controller product lines to use the connector pins of other interfaces to design output functions that control the on/off signal pin of PCI touch control. This pin is set to low voltage level or high voltage level to enable or disable touch functionality. This method is a hardware design concept and can be used across platforms and is not limited by disparate systems. Using hardware pins to complete on/off design is considered a custom process. If you intend to use the I2C interface, please contact our sales staff. We will propose a suitable solution. PenMount continues to make breakthroughs and innovate and continually provides comprehensive PCI touch controller solutions to the industrial field. Customer satisfaction is our core philosophy. This year’s Computex Taipei 2017 exhibition has come to a successful conclusion. We were delighted to host our customers and guests and we would like to thank you all for your support and acknowledgement of PenMount PCI products. See you next year! |
